NS-1VP05-1-L Vertical Single Box Voltage Regulating Power Supply
NS-1VP05-1-L Vertical Single Box Voltage Regulating Power Supply
Product Features:

Suitable for jewelry welding (electric beam expansion, joystick control)

High peak energy, with good welding effect for high anti metallic materials

Open structure, easy to install and maintain, stable performance

Multiple language versions available to meet export requirements

Optional CCD function, air-cooled water tank temperature control

L-shaped structure, suitable for different cabinet installation requirements

Details



Technical parameters

input voltage

AC220±10% 50/60HZ

Start time

13S

Pulse frequency

1.0~15.0HZ continuously adjustable

ambient temperature

≤45 ℃

pulse width

0.1~10.0ms adjustable grading

Operation method

Touch control

Control current

160V～ 430V

Display touch screen installation size

137mm*190mm

Single point energy

≤ 70J (may vary depending on the optical path configuration)

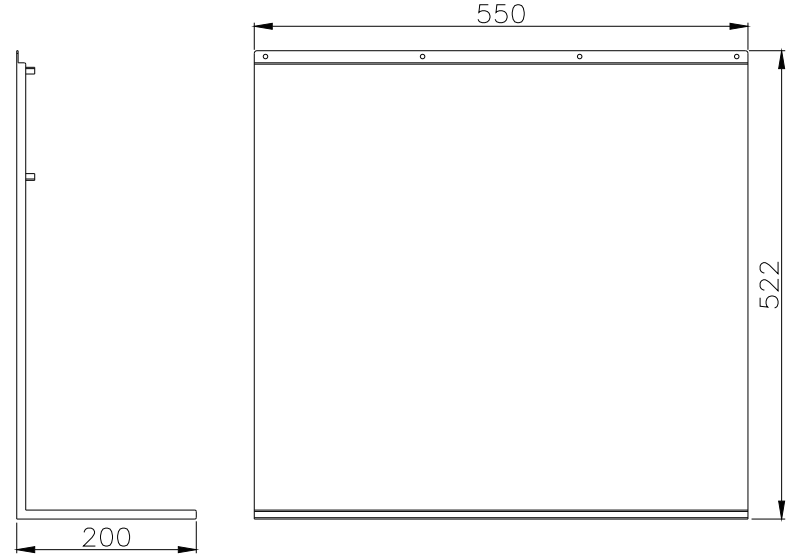

Power supply volume

L550mm*W200mm*H522mm

Power output power

≤5KW
